PRS PAUL REED SMITH 3 WAY DROP IN FOR CUSTOM 22 24 GUITARS

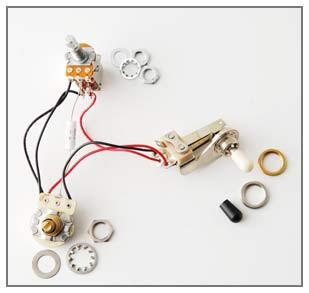

Drop-in - features 3-way toggle switch, Volume Pot, Push/Pull Tone Pot. Includes hardware. (ACC-4120)
Set up for use on PRS Custom 22, Custom 24, Stanard 22, Stanard 24, CE 22 and CE24 Guitars. The Pre wired Harness is set up for use on a 22 and 24 fret PRS Guitars Made in the USA with a 3 wire lead pickup wire. PLEASE USE ACC-4122 for use on the McCARTY 2 wire set ups.
3-Way Toggle, Master Volume and Push-Pull Tone Pot
PUSH-PULL DOWN POSITIONS
- Position 1: Treble Humbucker
- Position 2: Both Humbuckers
- Position 3: Bass Humbucker
PUSH-PULL UP POSITIONS
- Position 4: Bridge Single Coil
- Position 5: Both Single Coils
- Position 6: Neck Single Coil
PRS McCarty 3-Way Push-Pull Drop-in
Posted by Kevin Hyatt on 17th Nov 2014
This is a high quality PRS factory drop-in assembly for PRS or Gibson-style guitars with a 3-way selector, volume and tone controls. Use with 3 or 4 wire humbucker pickups to split the coils for single coil operation. Be sure to go to PRS's web site and get a copy of the wiring diagram for the above configuration. It does take some skill with a soldier iron and a study of the wiring diagram - if you follow the diagram, you should have a great factory-type mod. My McCarty now has several great tones.
