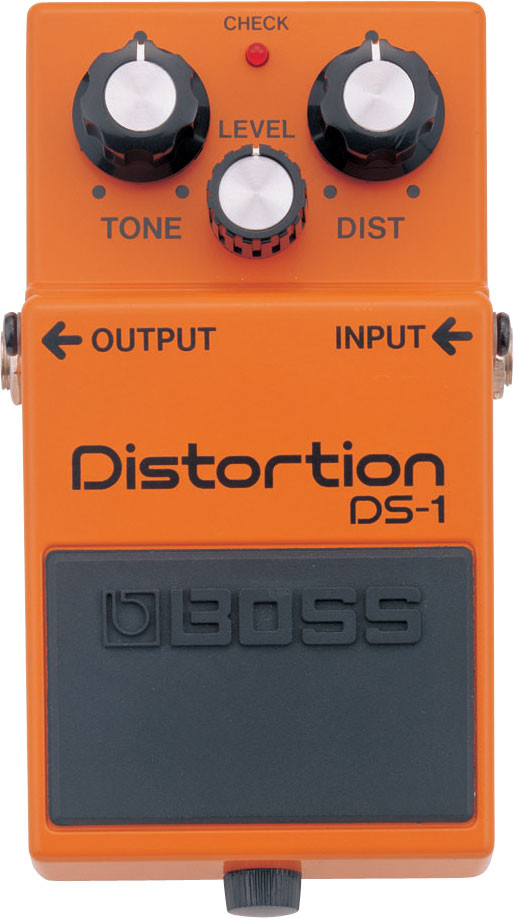

Product Description
The classic DS-1 Distortion pedal provides a harder distortion effect for guitar and keyboard sounds. Instead of toneless, fuzzy distortion, the DS-1 faithfully reproduces all the subtle nuances of playing dynamics--at any volume.
- Classic BOSS Distortion tones for guitar and keyboard
- Reproduces dynamics of playing, from soft to hard
- BOSS 5-year warranty
Controls
- Distortion
- Controls the ammount of effect placed in your signal.
- Level
- Controls the volume of the overall output of the pedal.
- Tone
- Turn left for a lower, bassier sound, turn right toward higher & brighter.
- Nominal Input Level
- -20 dBu
- Input Impedance
- 470 ohms
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Equivalent Input Noise Level
- -122 dBu (IHF-A, Typ.)
- Connectors
- INPUT Jack, OUTPUT Jack, AC Adaptor Jack (9 V DC)
- Power Supply
- DC 9 V: Dry Battery 9 V type, AC Adaptor
- Current Draw
- 4 mA (DC 9 V)
- Accessories
- Dry Battery 9 V type (6F22/9 V)
- Options
- AC Adaptor (PSA-Series)
- Size and Weight ( incl. battery )
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight
- 400 g
0 lbs. 15 oz.
