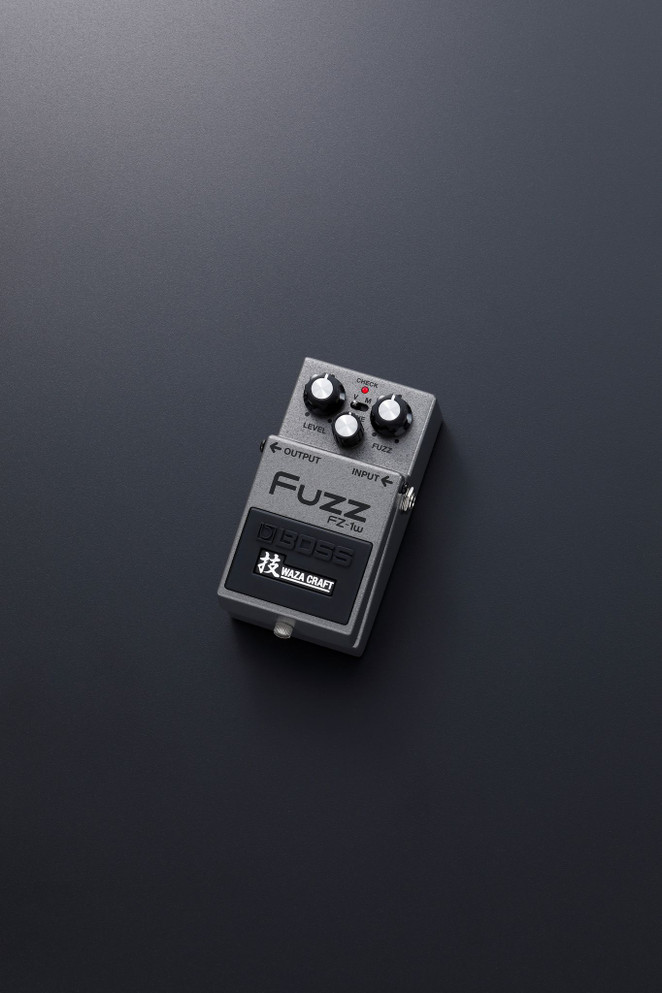

BOSS FZ-1W Fuzz
The BOSS FZ-1W Fuzz brings the unmistakable attitude and expressive response of classic fuzz into the premium Waza Craft lineup. Developed with BOSS expertise and a fully analog circuit, the FZ-1W delivers rich harmonic character, exceptional touch sensitivity, and the ability to move from vintage-inspired fuzz to a more aggressive modern voice.
Two distinct operating modes give the FZ-1W impressive versatility. Vintage mode produces an expressive, retro-style fuzz character with dynamic response and tonal complexity, while Modern mode provides increased gain and a fuller, more contemporary sound. Both modes respond beautifully to picking dynamics and changes from your guitar's volume control.
The straightforward Level, Fuzz, and Tone controls make it easy to shape the pedal for different guitars and amplifiers. Back off the Fuzz control for gritty, textured drive or push it higher for thick sustain, harmonically rich leads, and aggressive rhythm sounds.
At Northeast Music Center, we recommend the FZ-1W for guitarists who love the personality of vintage fuzz but want the consistency, flexibility, and road-ready construction of a modern BOSS pedal. Its analog design and Waza Craft refinement make it equally compelling for classic rock, blues, alternative, psychedelic, and modern guitar styles.
Northeast Music Center proudly offers premium BOSS effects for musicians who demand inspiring tone and dependable performance. Choose your BOSS FZ-1W from Northeast Music Center and experience a carefully engineered fuzz pedal backed by knowledgeable service and an exceptional buying experience.
Key Features
- Premium Waza Craft fuzz pedal
- Fully analog circuit design
- Vintage and Modern operating modes
- Vintage mode delivers expressive, classic-inspired fuzz character
- Modern mode provides increased gain and a fuller tonal response
- Level, Fuzz, and Tone controls
- Highly responsive to picking dynamics and guitar volume
- Rich harmonic content and excellent sustain
- Legendary BOSS compact-pedal construction
- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohms (Effect Off)
22 k ohms (Effect On) - Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Recommended Load Impedance
- 10 k ohms or greater
- Controls
- Pedal switch
Mode switch
FUZZ knob
TONE knob
LEVEL knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately) - Current Draw
- 16 mA
- Expected battery life under continuous use
- Alkaline: Approx. 33 hours
Carbon: Approx. 14 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61 or 6LF22) - Options (sold separately)
- AC adaptor: PSA series
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 430 g
1 lb
