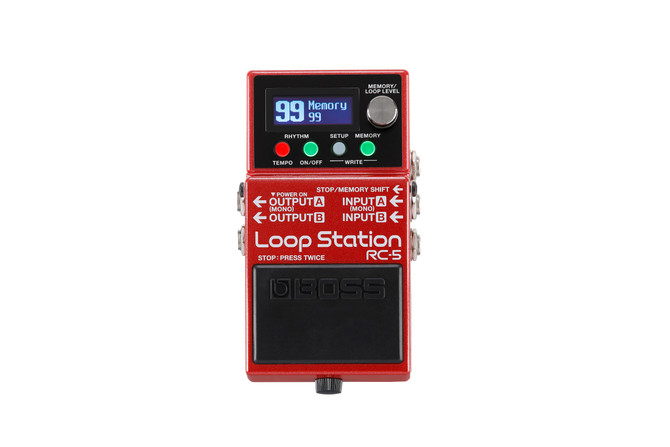

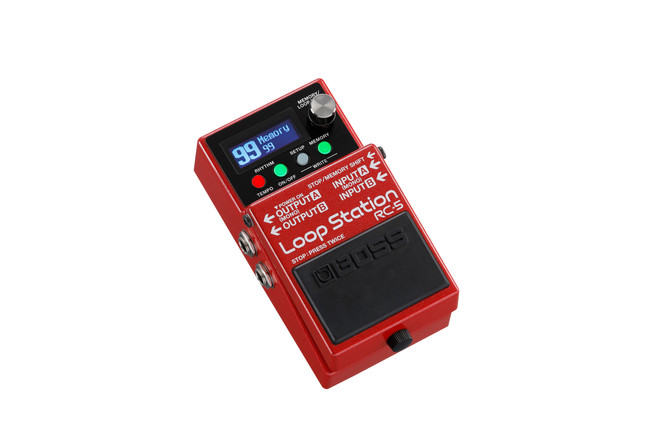

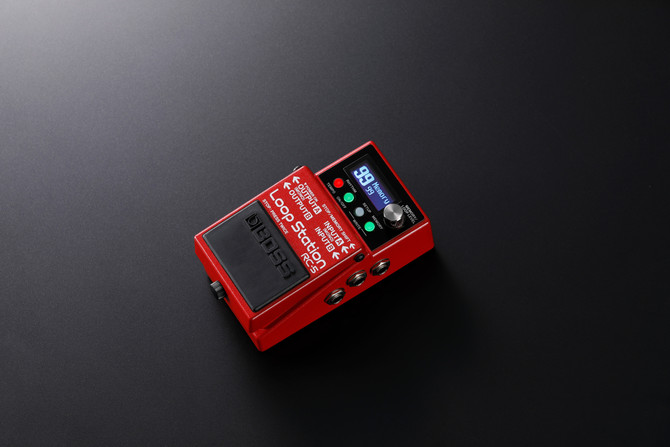

BOSS RC-5 Loop Station
The BOSS RC-5 Loop Station brings advanced looping power to the familiar BOSS compact-pedal format, giving musicians outstanding sound quality, extensive recording capacity, and creative flexibility. With 32-bit AD/DA conversion and 32-bit floating-point processing, the RC-5 captures your performance with exceptional clarity while providing up to 13 hours of stereo recording time.
At Northeast Music Center, the RC-5 is an excellent choice for guitarists, bassists, and creative performers who want more advanced looping capabilities in a compact design. 99 phrase memories, 57 preset rhythms, MIDI support, and a bright multi-color LCD make it easy to create, organize, and control sophisticated loops. Northeast Music Center proudly offers BOSS Loop Stations for practice, songwriting, and professional performance. Expand your creative possibilities with the BOSS RC-5 Loop Station today from Northeast Music Center.
KEY FEATURES
- 32-bit AD/DA and 32-bit floating-point processing
- Up to 13 hours of stereo recording time
- 99 phrase memories for storing loops
- 57 preset rhythm patterns with multiple variations
- Bright multi-color LCD for easy loop monitoring
- MIDI connectivity for expanded control
- Stereo inputs and outputs
- USB connectivity for importing and exporting loops
- Legendary BOSS compact-pedal durability
- Specifications
- Sampling Frequency
- 44.1 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Recording/Playback
- Number of Track: 1
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) - Rhythm Type
- 57 Patterns x 2 Variations
- Rhythm Kit
- 7 types
- Effect
- Reverb (only for rhythm part)
- Memory
- 99
- Nominal Input Level
- INPUT A/MONO, B: -20 dBu
- Input Impedance
- INPUT A/MONO, B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B:-20 dBu
- Output Impedance
- OUTPUT A/MONO, B: 1 k ohm
- Recommended Load Impedance
- OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
- Display
- Graphic LCD (96 x 32 dots, RGB backlit LCD)

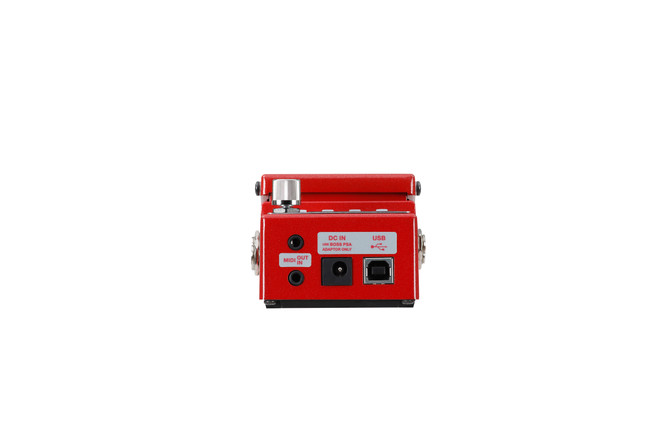

- Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
STOP/MEMORY jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately) - Current Draw
- 170 mA
- Expected battery life under continuous use
- Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22) - Options (sold separately)
- AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 - Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 56 mm
2-1/4 inches - Weight (including battery)
- 450 g
1 lb
