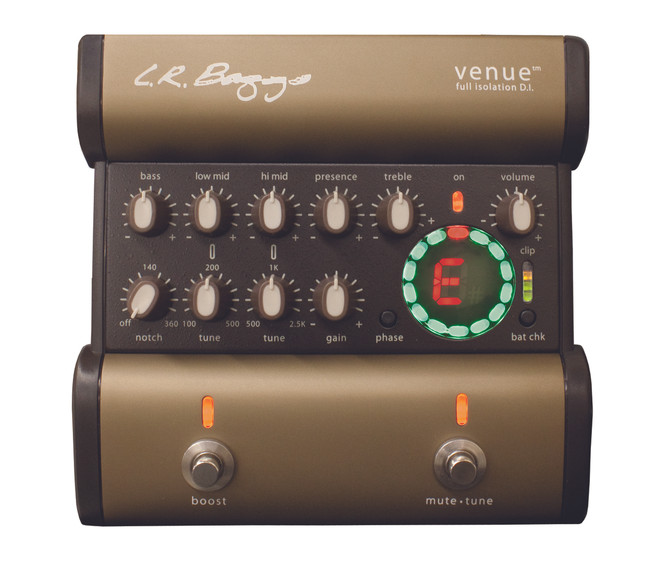

L.R. Baggs Venue DI Acoustic Guitar Direct Box and Preamp

Name: L.R. Baggs Venue DI Acoustic Guitar Direct Box and Preamp
Brand: LR BAGGS
SKU: VENUE_DI
Price: 329.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 review Write a Review

Get the perfect acoustic tone. The LR Baggs Venue DI Acoustic Direct Box offers a discrete acoustic guitar preamp. It combines a transformer-coupled DI output for maximum isolation, an EQ specifica…

SKU: VENUE_DI

UPC: 0897042002181

Condition: New

Availability: usually ships within 24 hours

Weight: 5.00 LBS

Shipping: Free Shipping

$329.99

Hurry up! Current stock:

Current Stock: 1

Quantity:

‹a href="https://etail.mysynchrony.com/eapply/eapply.action?uniqueId=565510A04C0A508A9B08008A2948A97F314CE4D0C7122470& ;client=Northeast%20Music%20Center" target="_blank"> Synchrony Prodcut Page Banner

5 customers are viewing this product

Product Details

Get the perfect acoustic tone.

The LR Baggs Venue DI Acoustic Direct Box offers a discrete acoustic guitar preamp. It combines a transformer-coupled DI output for maximum isolation, an EQ specifically tuned for acoustic guitars, a variable-boost control to complement your playing styles, and a chromatic digital tuner to help you stay in tune. Combining features from at least three stompboxes into one pro box, the LR Baggs Venue D.I. brings a new level of fidelity, confidence, and usefulness to performing acoustic musicians. The Venue D.I. is one of the most comprehensive and best-sounding tools ever to tame the surliest stage.

Features

High-end audio transformer coupled XLR for full immunity from ground loops
100% Discrete circuitry and EQ for sweet transparent and ultra quiet sound
Adjustable gain to handle most passive and active inputs
Garret Null notch filter to non-destructively handle feedback
Full chromatic tuner with footswitch mute/tune function
Bomber construction with metal shaft potentiometers
Phase inversion for best sound and feedback control
Works with 9V battery or DC adapter (not included)
Tunable low and high mid controls
Adjustable solo boost foot switch control
Real VU meter to accurately set gain
4-segment battery status gauge

Venue DI Acoustic Guitar Direct Box and Preamp Specifications:

1/4" input
Input Impedance 10 mOhms
Preamp Gain -12dB to +26dB
Input Level -25dBv to +1.8dBv (.053Vrms to 1.23Vrms)
EQ
Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave
Bass +/- 12dB @ 90Hz
Lo Mid +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz
Hi Mid +/- 12dB @ 1kHz, sweepable from 500Hz to 2.8kHz
Presence +/- 12dB @ 3kHz
Treble +/- 12dB @ 10kHz
Effects Loops
Send Level 0 dBv (0.707Vrms)
Output Impedance 600 Ohms
Return Level 0dBv (0.707Vrms) Maximum before clipping
Input Impedance 80 kOhms
D.I. OUT
Output level -1dBv (0.88Vrms) Balanced
Output impedance 600 Ohms (Transformer coupled)
LINE OUT
Output level -1dBv (0.88Vrms) Un-balanced
Output impedance 200 Ohms

Customer reviews (1)

Write a Reviews

LR Baggs Venue 5

Posted by Pj Clement on 18th Nov 2019

This device solved my piezo problem. Nice piezo guitar, just really weak sounding. This device gave my acoustic tone GIRTH!! Much nicer playing through a PA with this unit. Highly recommended!!
